SunFounder’s PiCar-X is exactly the kind of robotics kit TVG wants to evaluate more often: affordable enough for classrooms and home labs, open enough to expose real software and wiring decisions, and ambitious enough to promise AI, vision, voice, and Raspberry Pi control in one compact platform.
Disclosure / review-unit status
This is a review-style buyer evaluation, not a hands-on review. TVG has not received a review unit for this article; this analysis is based on manufacturer specifications, official product information, public documentation, and TVG’s engineering review criteria. TVG has not measured battery life, camera quality, motor performance, assembly tolerances, classroom durability, or software reliability on this kit.
Product summary

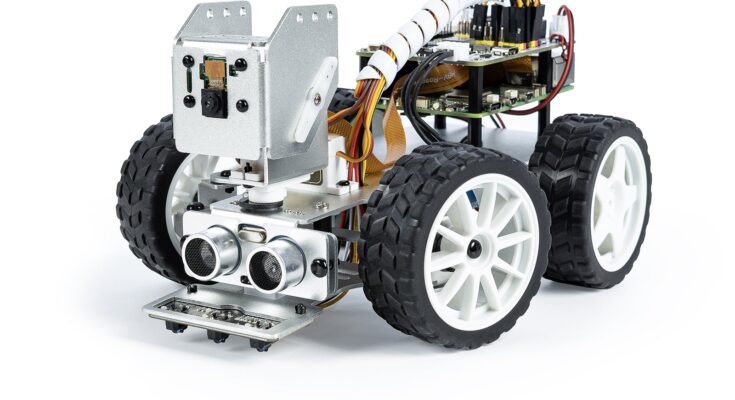

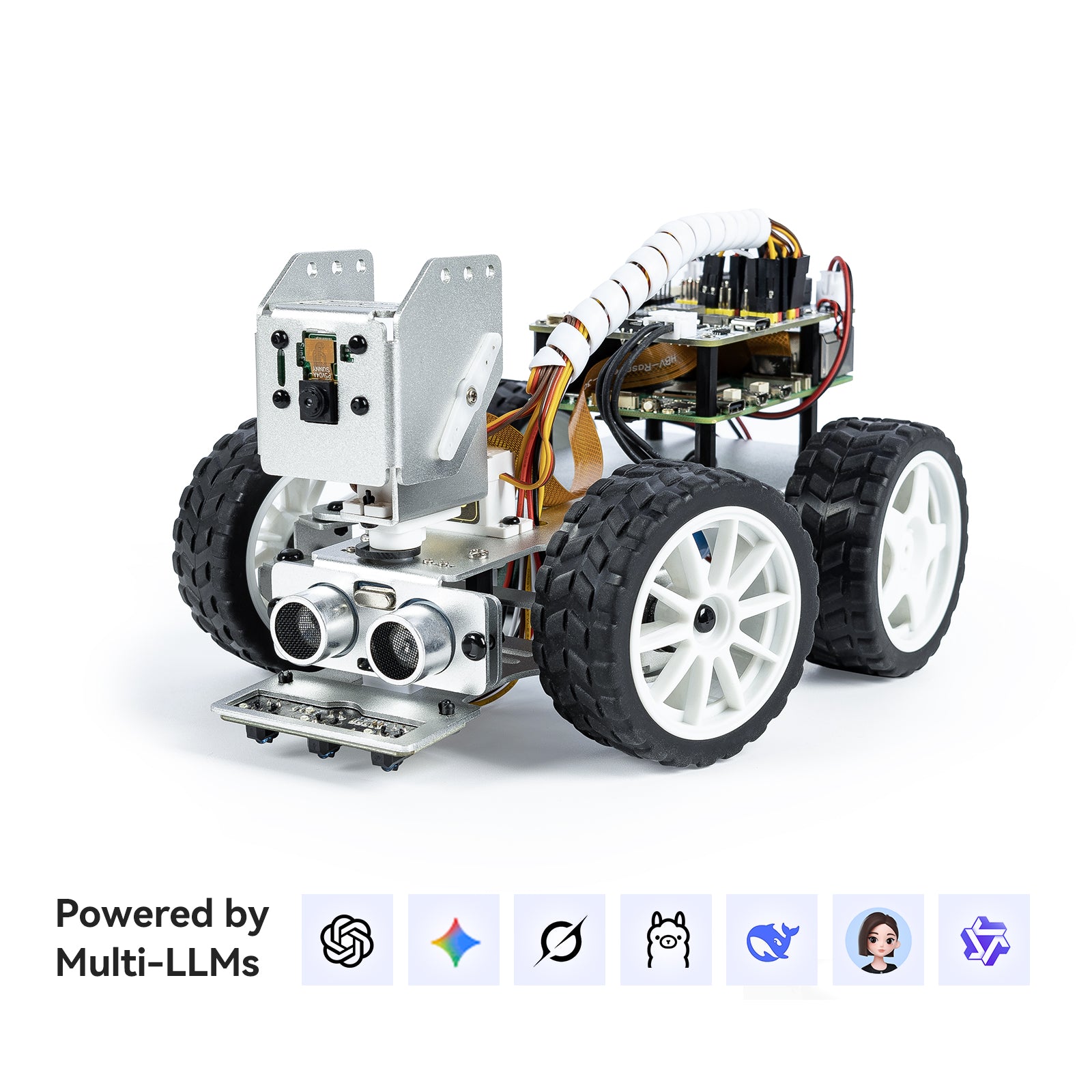

The SunFounder PiCar-X is a Raspberry Pi-based AI video robot car kit. SunFounder’s current product page describes it as an AI video robot car kit for Raspberry Pi 5, Raspberry Pi 4, Raspberry Pi 3B+, and Raspberry Pi Zero 2W, with voice and video recognition, Python and Scratch support, a camera, battery, and AI integrations. The page lists the kit at $89.99 at the time of this review preview, with the Raspberry Pi itself not included.
The product pitch is broad: computer vision, voice interaction, OpenCV, MediaPipe, text-to-speech, speech-to-text, and multi-LLM support including cloud models such as ChatGPT-4o, Gemini, Grok, DeepSeek, Qwen, Doubao, plus Ollama for local LLM workflows. That makes PiCar-X more than a beginner line-following car. It is positioned as a bridge between classic educational robotics and the newer “AI robot companion” category.
Who it is for
PiCar-X looks strongest for three groups. The first is STEM classrooms that already use Raspberry Pi and want a visible, moving project instead of another blinking-LED lab. The second is parents or mentors helping a motivated middle-school or high-school learner move from block coding into Python. The third is makers who want a compact test platform for camera streaming, sensor fusion, offline voice control, and LLM-assisted robot behaviors without building a chassis from scratch.
The kit is less obviously ideal for teams that need a competition-grade drivetrain, industrial reliability, or a robot that works out of the box with no Linux setup. SunFounder’s own documentation makes clear that buyers still need to prepare a Raspberry Pi board, microSD card, and an appropriate power adapter, so the real purchase is a robotics curriculum plus hardware platform, not a sealed consumer robot.
Technical specs and design signals
The most important design signal is the Raspberry Pi dependency. SunFounder’s official “What Else Do You Need?” page says compatible models include Raspberry Pi 5, Raspberry Pi 4, Raspberry Pi 3, and Raspberry Pi Zero 2W. It also recommends power supplies appropriate to each Pi generation, including a 5V 5A USB-C supply for Raspberry Pi 5 and a 5V 3A USB-C supply for Raspberry Pi 4. That matters because undervoltage is one of the fastest ways to make a robotics kit look unreliable when the real problem is power budgeting.
The documentation also recommends at least a 16GB microSD card, with 32GB preferred for stability, and suggests a monitor, HDMI cable, keyboard, and mouse for initial setup. In practice, that means PiCar-X is best treated as a real Linux robotics project. The setup burden is part of the learning value, but it should be priced into classroom planning.
On the software side, the official PiCar-X documentation includes assembly, Python, Ezblock, AI interaction, hardware, and FAQ sections. The AI interaction section specifically covers text-to-speech, speech-to-text, LLM workflows, offline voice control with Vosk, text/vision interaction with Ollama, online LLM connections, a local voice chatbot, and an AI voice assistant car. That is a useful curriculum signal: the kit is not only about movement, but about the software stack around movement.
What TVG would test
First, we would test assembly repeatability. Educational robotics kits succeed when a first-time builder can recover from mistakes without stripping screws, cracking mounts, misrouting wires, or giving up before software starts. The physical chassis, camera mount, servo alignment, cable strain relief, and battery accessibility would be the first inspection points.
Second, we would test power behavior under realistic loads. A Pi-based robot car can fail in confusing ways if motors, servos, camera streaming, Wi-Fi, audio, and AI workloads pull the system below stable voltage. TVG would run movement, video streaming, and AI demos while watching for brownouts, throttling, disconnects, and motor resets.
Third, we would test the learning path. A strong kit should let students get one success quickly, then expose deeper layers. We would compare Ezblock and Python workflows, check whether examples are current for Raspberry Pi 5 and recent Raspberry Pi OS releases, and see whether error messages are clear enough for a classroom or parent-led build.
Fourth, we would test the AI claims carefully. Voice control, local LLM workflows, online model integrations, and camera-based behaviors are exciting, but they can also hide latency, account setup, subscription, privacy, or reliability issues. TVG would separate what runs locally from what depends on external APIs, then document which demos are robust versus novelty-driven.
Fifth, we would test repairability and extension. The best review-unit outcome would include checking replacement parts, sensor access, spare screws, open code quality, GitHub/package maintenance, and how easy it is to add a new sensor or change the control loop.
Failure points / risks / unknowns
The biggest risk is expectation mismatch. “AI robot car” can sound like a finished autonomous robot, while PiCar-X appears better understood as a learning platform. Buyers should expect setup, debugging, software dependencies, and calibration work.
The second risk is total system cost. The headline kit price does not include every required component for a new Raspberry Pi user. A Pi board, microSD card, power adapter, monitor or remote-access setup, and possibly batteries or charging workflow can move the real classroom or home-lab budget higher than the kit price alone suggests.
The third risk is software drift. Robotics education kits depend on documentation staying synchronized with operating-system releases, Python packages, camera libraries, and AI APIs. SunFounder’s current docs are a positive signal, but hands-on testing would need to confirm that a new builder can follow them without chasing old dependency fixes.
The fourth risk is privacy and classroom governance around AI features. If online LLM integrations are used, educators should understand what data leaves the local device, which accounts are required, and whether the same lesson can run offline or in a restricted network environment.
Who should consider it
PiCar-X should be on the shortlist for buyers who want a Raspberry Pi robotics kit that can grow from basic movement into camera, Python, voice, and AI experiments. It is especially interesting for small STEM programs, robotics clubs, homeschool labs, and makers who want a platform that looks approachable but still exposes real engineering tradeoffs.
Buyers who only want a toy-like robot with minimal setup should be careful. So should schools without staff or mentors comfortable with Raspberry Pi imaging, Linux troubleshooting, power supplies, and software-package maintenance. In those environments, the kit may still be useful, but only if time is allocated for preparation before students touch it.
TVG Take
PiCar-X has the right ingredients for TVG’s review pipeline: a review-accessible vendor, a practical robotics education use case, real Raspberry Pi dependencies, and enough AI/vision claims to deserve careful testing rather than marketing repetition. The official documentation suggests SunFounder is thinking beyond a simple car kit, especially with offline voice, local LLM, and computer-vision lessons.
Our early judgment is positive but conditional. PiCar-X looks promising as a STEM robotics platform if the assembly quality, power stability, documentation currency, and AI demos hold up under real classroom-style use. A full TVG review would focus less on whether the car can perform a polished demo once, and more on whether a learner can build, debug, extend, and understand it without the kit becoming a black box.
