A robot that drives normally for 30 seconds and then stutters, browns out, or refuses to turn may not have a software bug. It may have a motor driver that is overheating, current-limiting, or shutting down under a load that never appeared during bench testing.
This support guide is for STEM teams, maker labs, and small robotics builders using brushed DC, stepper, or compact motor-driver boards. It focuses on safe low-voltage diagnostics and basic test discipline, not mains wiring or industrial drive work.
Quick answer
- If failure appears after warm-up, suspect heat or current limiting before rewriting control logic.
- Test with the robot under realistic load, not wheels in the air only.
- Check driver temperature, supply voltage at the driver, motor current, airflow, and connector heating.
- Add heat sinks or fans only after confirming the board is operating within its rated limits.
Why thermal faults mimic code faults
Many small motor drivers protect themselves by reducing output or shutting down when temperature or current gets too high. From the robot’s point of view, that can look like a bad PID tune, a missed command, a weak battery, or a random firmware issue.
Texas Instruments current-rating guidance, Pololu driver documentation, and semiconductor thermal notes all point to the same practical reality: current, board layout, heat sinking, airflow, and ambient temperature decide how much performance a small driver can deliver continuously.
A repeatable test sequence
- Record the symptom. Note time to failure, command, battery voltage, surface, and robot load.
- Measure supply voltage at the driver. A drop at the board matters more than a healthy unloaded battery reading.

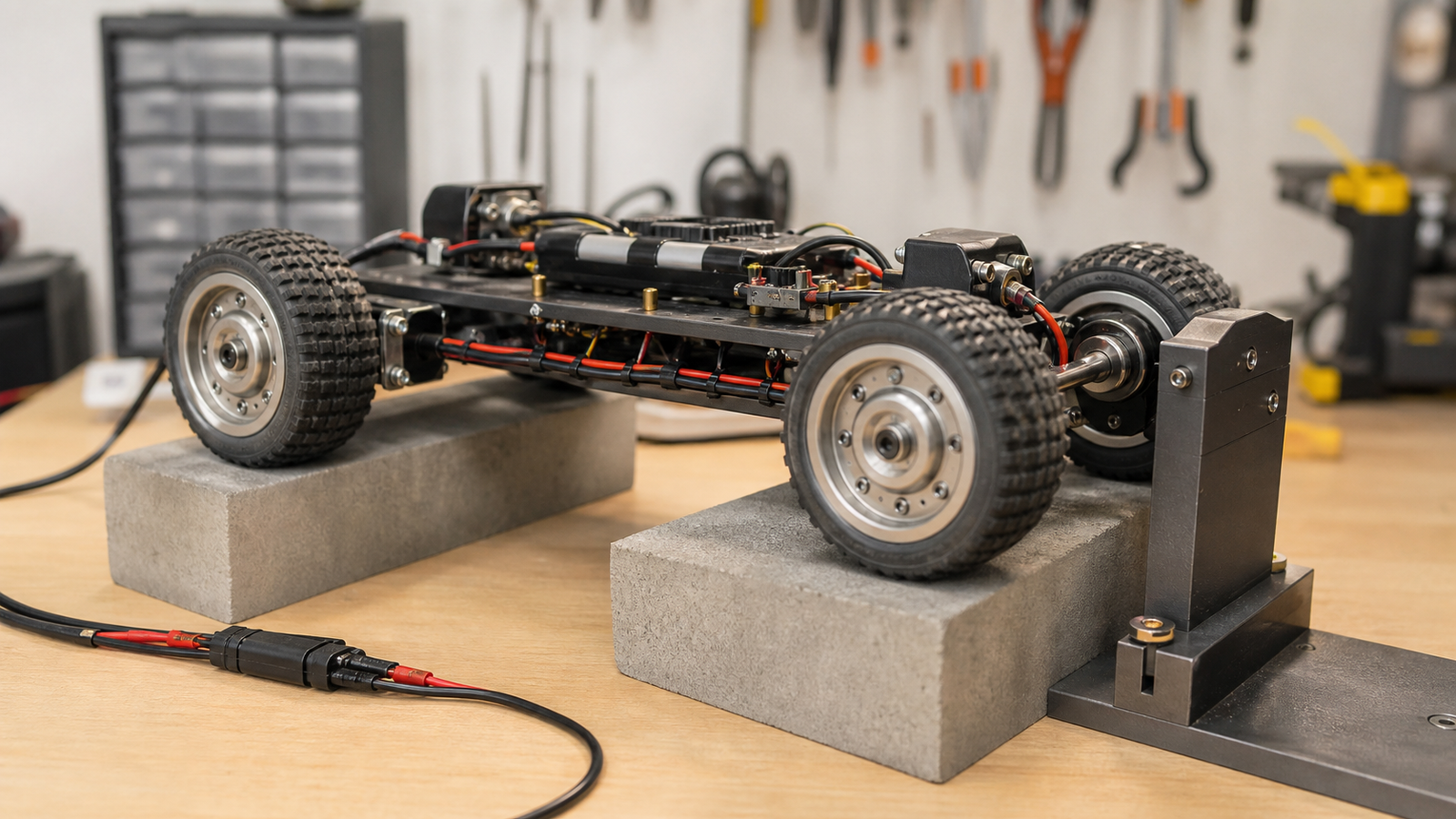

- Run wheels unloaded, then loaded. Compare behavior with the robot lifted and on the real surface.
- Check temperature safely. Use a non-contact thermometer or thermal camera if available; do not touch hot components.
- Inspect connectors. Warm plugs, loose terminals, and undersized wires can create voltage drop and heat.
- Reduce current demand. Lower acceleration, limit stall conditions, or choose a driver with more margin.
When hardware changes are justified

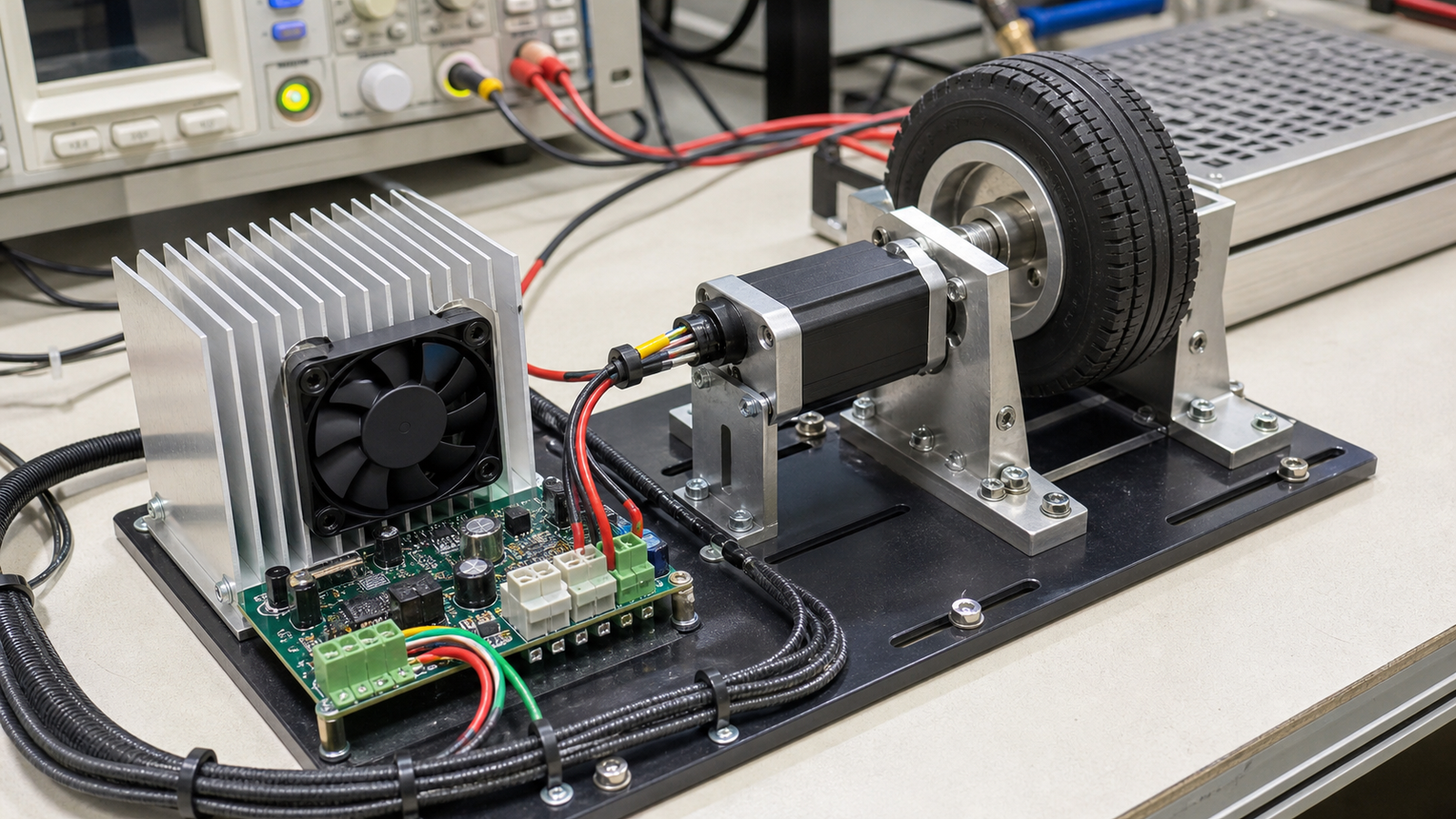

Heat sinks and fans can help only when the driver is otherwise being used correctly. If the motor is stalled, the current limit is set too high, the board is undersized, or the wiring is poor, airflow may hide the real problem without making the robot reliable.
TVG Take
Motor-driver heat is a good support topic because it forces teams to stop treating every motion problem as code. Before changing firmware, capture a load test, voltage readings, temperature behavior, and connector condition. If the robot fails only after the driver gets hot, the fix starts in the power path and thermal design.
Separate stall, startup, and cruise current
A robot drive base can look healthy during a light cruise and still overload the driver during startup, turning, pushing, or carpet transitions. Test those cases separately. Log what command was sent, whether the wheels were slipping or stalled, and how quickly the driver recovered after cooling.
If the fault appears only during aggressive acceleration, the software may still be part of the fix, but not because the code is “wrong.” A gentler ramp, current limit, or different gearing may reduce the thermal load enough to keep the same hardware reliable.
