When robot sensors look noisy, check the power rail before blaming code. Voltage dips, shared grounds, long leads, and motor switching can corrupt clean sensor logic.
For small robots, power integrity is often treated as an afterthought. That is a mistake.
Quick answer
Debug robot sensor noise by separating symptoms from causes: measure supply voltage near the sensor, test with motors disconnected, check grounding and cable routing, add appropriate decoupling, and document the exact load that causes failure. Do not assume a sensor library or firmware bug until the power path has been checked.

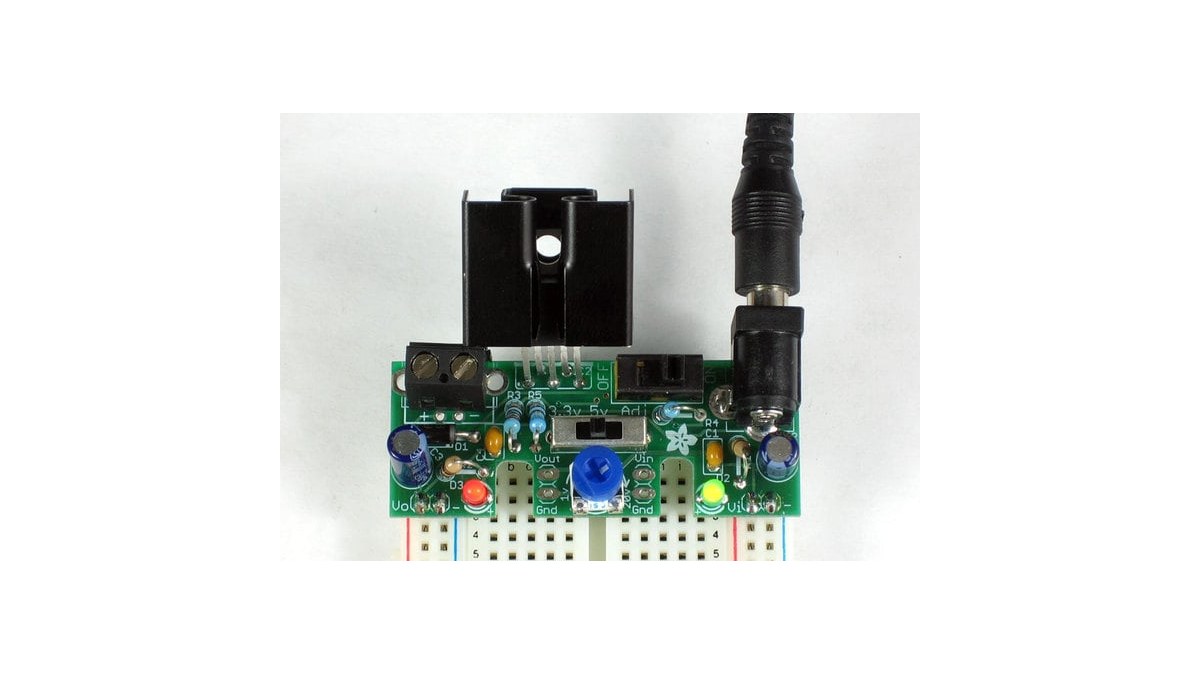

Why power rails fool builders
Arduino’s documentation is a common starting point for microcontroller projects, but real robots quickly move beyond the tidy single-board demo. Motors, servos, LEDs, radios, cameras, and sensors all share a physical system with wires, regulators, connectors, and batteries.
Power-management resources from companies such as Texas Instruments and Analog Devices spend so much attention on regulation, transient behavior, layout, and filtering because electronics rarely fail only in the abstract schematic. They fail in the real arrangement of loads, cables, and return paths.
On a robot, a motor current spike can pull a shared rail down. A long sensor cable can pick up noise. A loose connector can create intermittent voltage drops. A regulator can overheat inside an enclosure that worked fine on an open bench.
Start with isolation
Run the sensor with the motors disabled. Then run the motors without using the sensor data. Then combine them while logging voltage near the sensor, not only at the battery. If the failure appears only when a load changes, the debugging path is already clearer.
Use TVG’s robot connector guide as a mechanical checklist. A good electrical design can still fail if the harness shakes loose, clamps insulation, or routes a sensor lead beside a noisy motor cable.

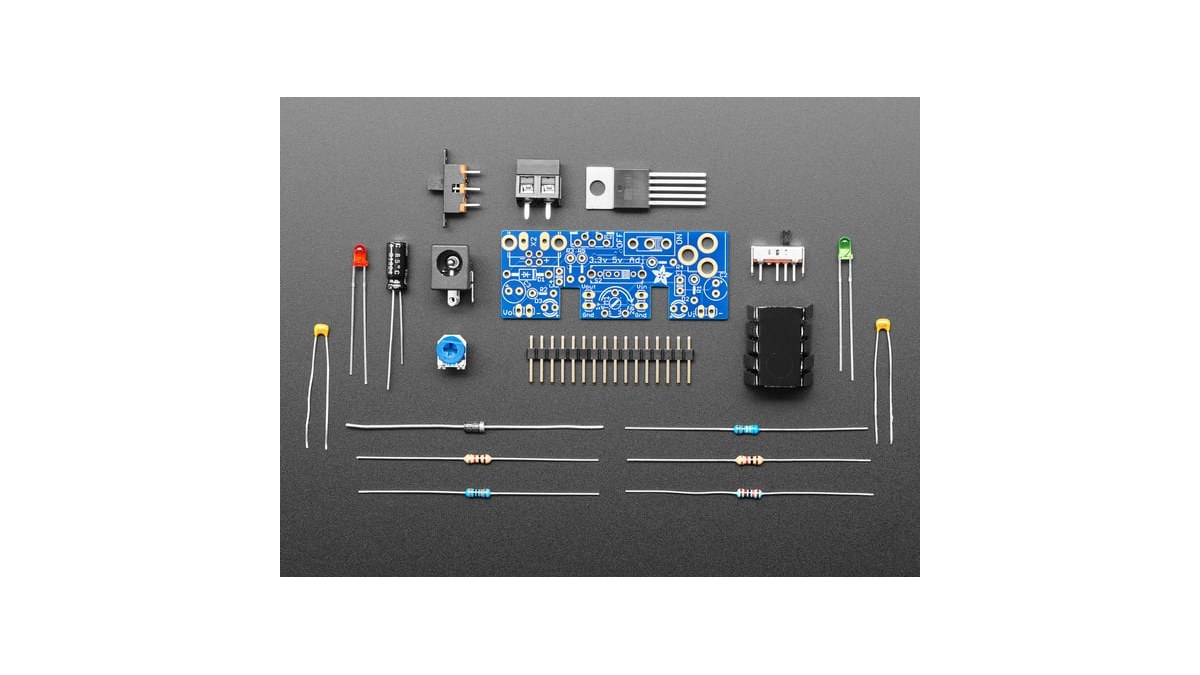

Practical fixes to test
- Separate rails: keep noisy motor loads away from sensitive sensors when the design allows it.
- Local decoupling: place capacitors near the device that needs the transient current, not only near the battery.
- Ground discipline: avoid return paths that force motor current through sensor reference paths.
- Cable routing: separate sensor lines from motor leads and add strain relief.
- Thermal checks: test after the enclosure is closed and the robot has run for a realistic period.
Measurement beats guessing
A multimeter can catch low steady-state voltage. An oscilloscope can show dips and spikes that a meter averages away. A simple test log can also be powerful: battery voltage, load state, sensor reading, reset events, temperature, and cable position.
This connects to TVG’s camera reliability checklist. The best robotics debugging often starts with the boring physical layer before blaming the algorithm.
TVG Take
Robot sensor noise is a systems problem. Code, power, grounding, connectors, routing, and mechanical strain all meet at the measurement. The disciplined move is to prove the power rail is stable before rewriting software that may not be broken.
