AprilTag boards are often treated like disposable printouts until a robot demo fails in front of an audience. The code may be unchanged, the camera may be focused, and the pipeline may be configured correctly, but the printed target can still bend, glare, fade, wrinkle, or get mounted at a different angle after transport.
This support guide is for STEM robotics teams, classroom labs, and maker groups that use AprilTags or similar fiducial targets for robot localization, alignment, or demo navigation.
Quick answer
- Store tag boards flat or protected so they do not curl before the demo.
- Transport targets in sleeves or rigid folders, not loose in a robot cart.
- Check glare, print damage, mounting height, and angle after setup.
- Keep a known-good spare board and a camera exposure checklist.

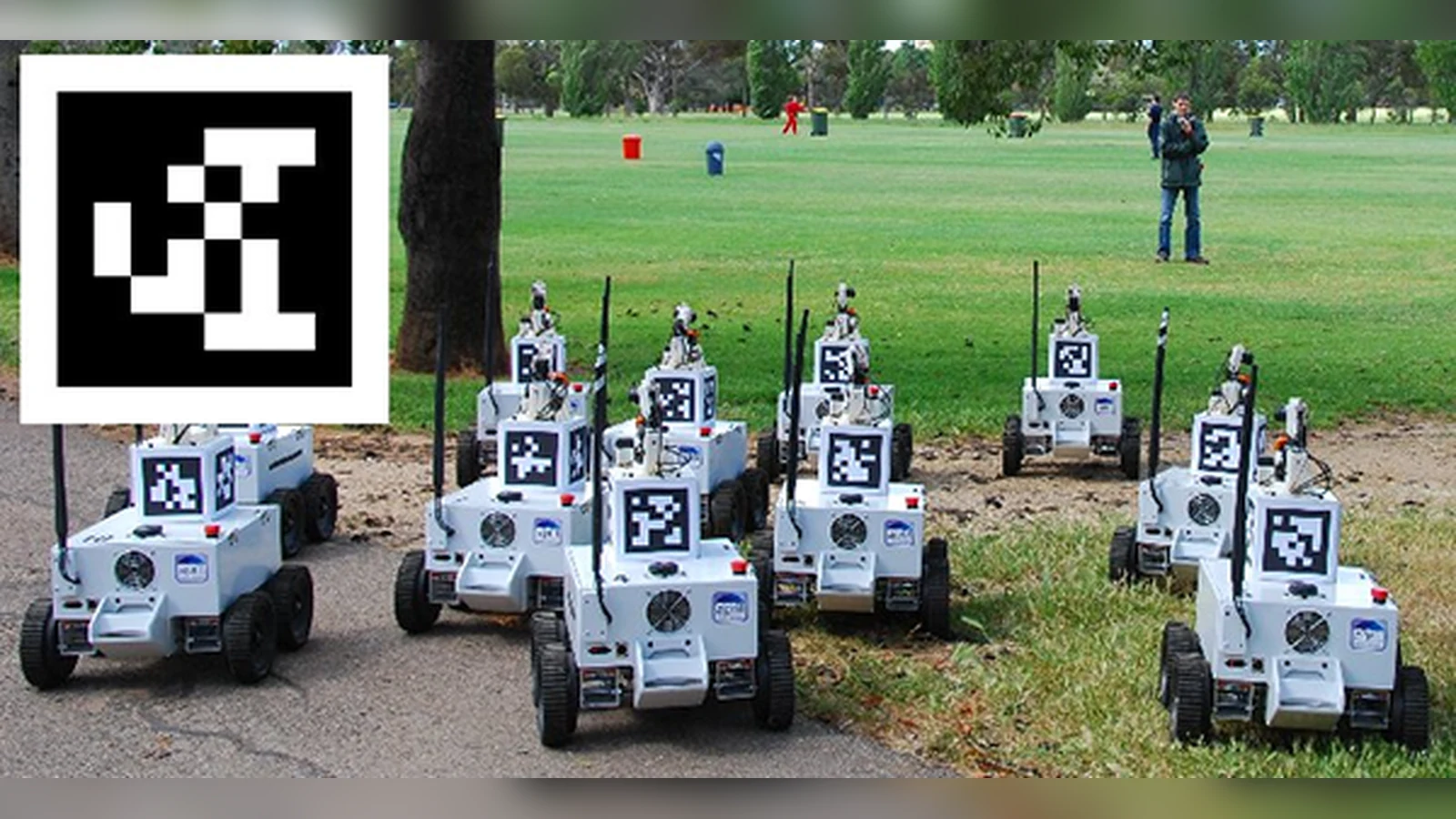

Why the board is part of the vision system
AprilTag software and documentation from the University of Michigan AprilRobotics project, WPILib, and PhotonVision all treat tags as fiducial markers that a camera pipeline detects and estimates. That means the printed marker, mounting surface, lighting, camera exposure, and physical geometry all affect the result.
A tag that was printed cleanly can become unreliable if it is bent, laminated with a glossy surface, taped at an angle, or placed under a light that blows out one side of the image.

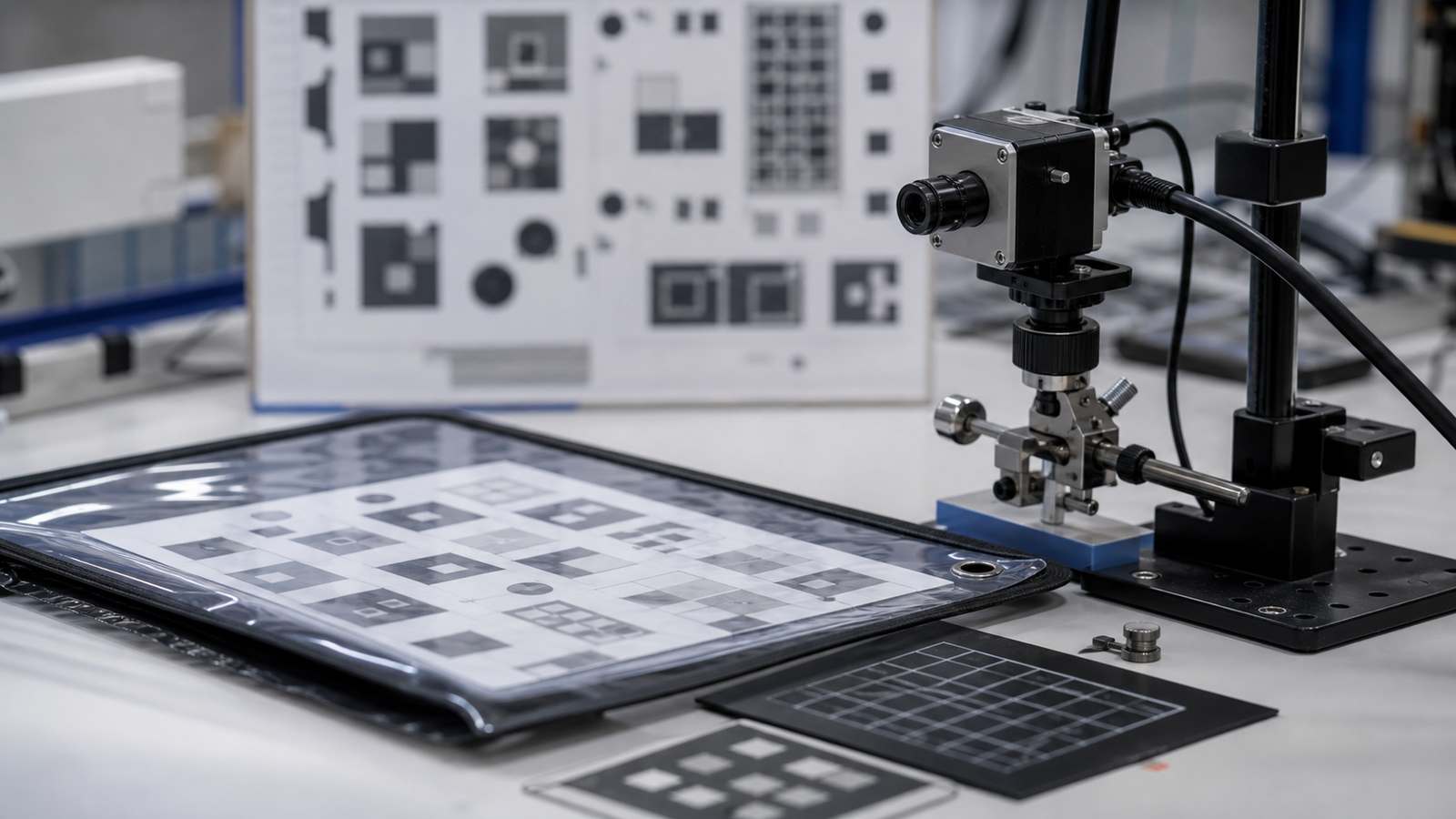

A storage and transport checklist
- Use a rigid backing. Foam board, card stock, or another flat substrate is easier to remount consistently.
- Protect the surface. Avoid scratches, wrinkles, smudges, and glossy glare.
- Label the back, not the front. Keep the visible marker area clean.
- Pack with the camera kit. The target, mount, clamps, and exposure notes should travel together.
- Photograph the setup. A quick reference photo helps rebuild height and angle at the venue.
- Bring a spare. Reprinting at the event is rarely the best recovery plan.

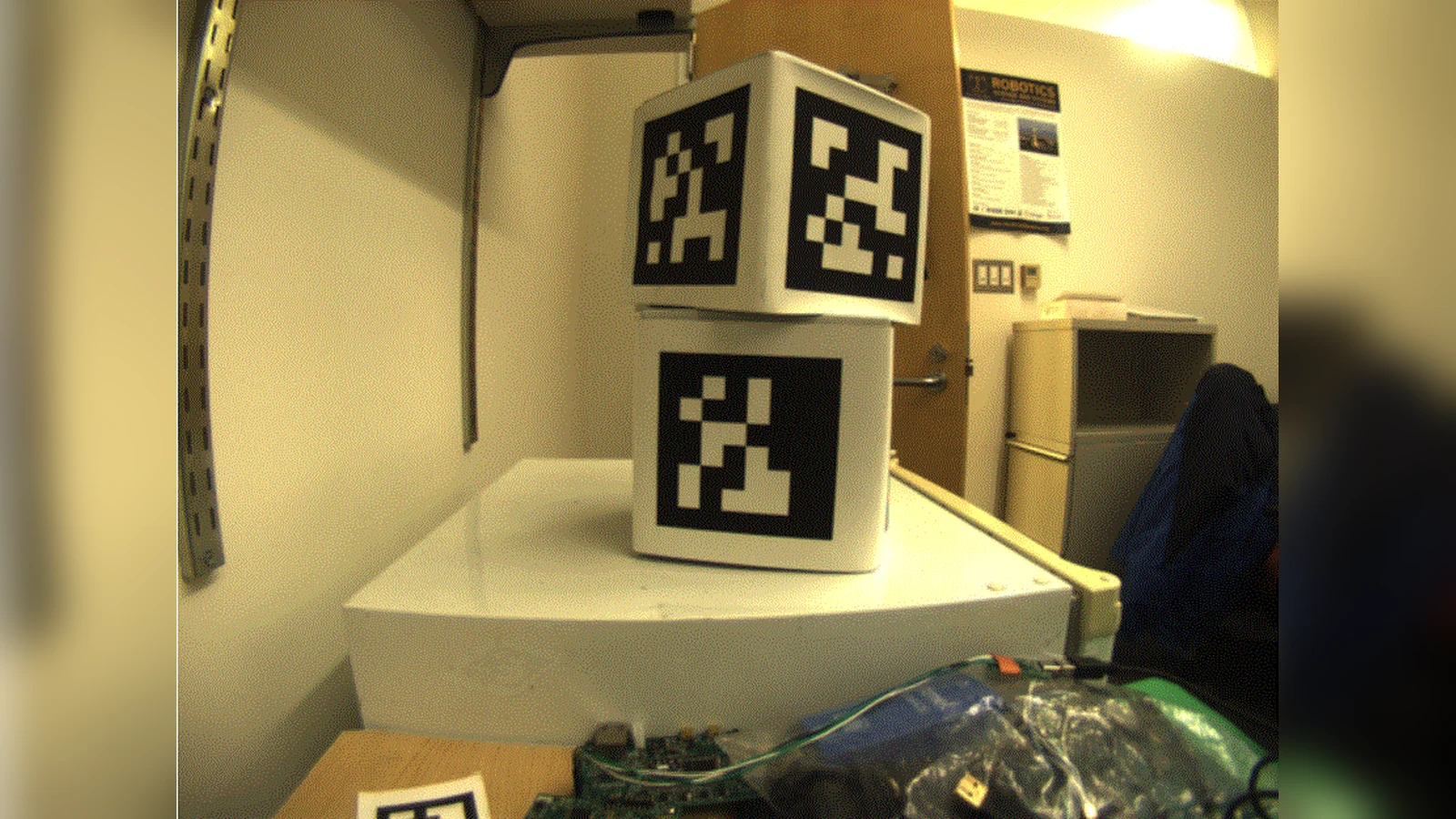

Pre-demo checks
Before changing code, verify that the camera sees the board under venue lighting, that exposure is locked or controlled, that the board is not warped, and that the target size in the pipeline matches the printed size. If the robot detects the tag only at one distance or angle, inspect the physical setup first.
TVG Take
AprilTag reliability is not only a software topic. A good robot-vision demo treats the tag board like a calibration tool: protected, repeatable, measured, and checked under the actual lighting. Storage and transport rules are boring until they save the demo.

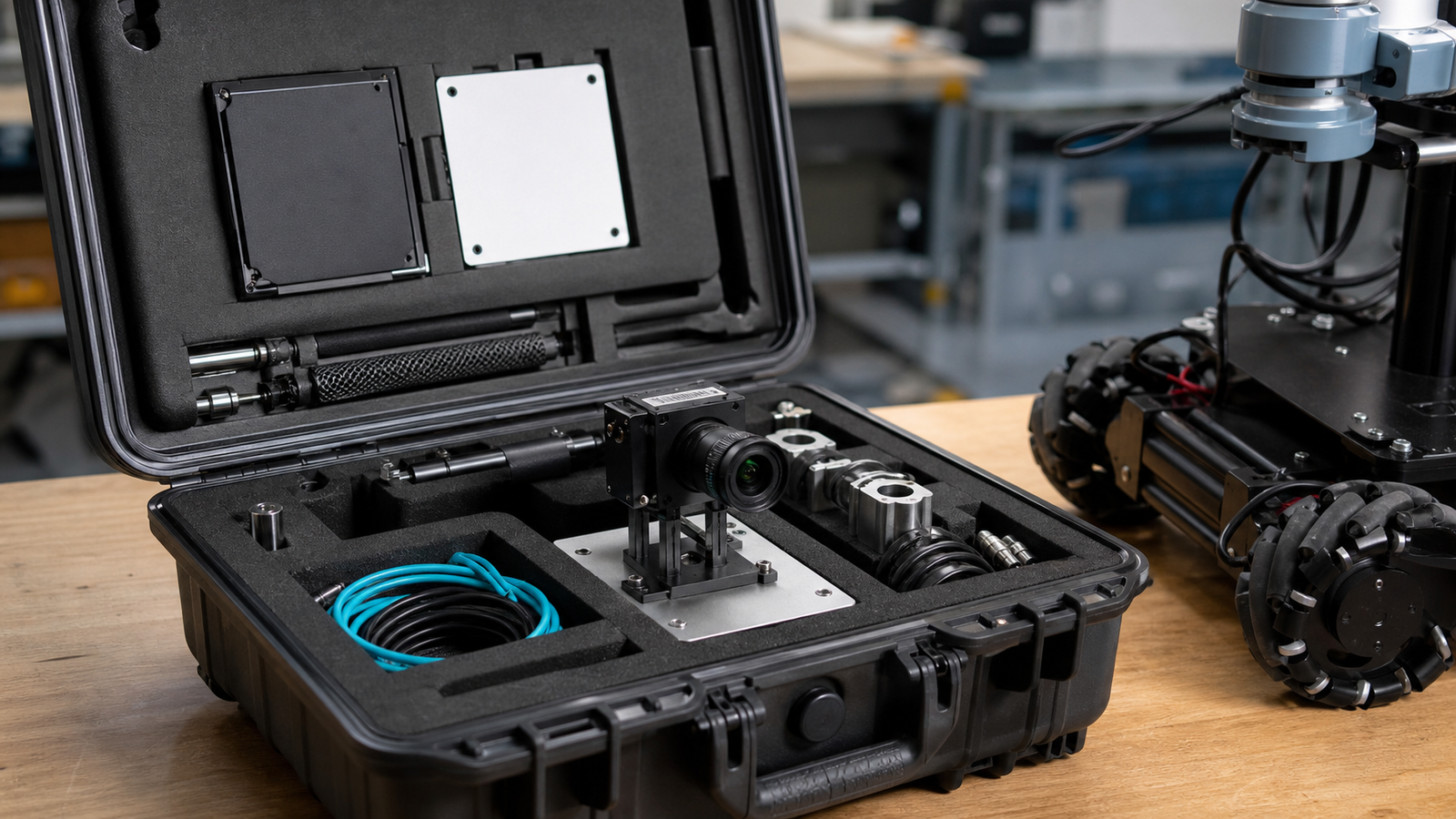

What to put in the demo kit
A good robot-vision kit should include the printed targets, a rigid storage sleeve, a tape measure, spare mounting hardware, a small level if height matters, cleaning cloth, and a one-page setup note. The note should list tag size, expected mounting height, camera exposure setting, and a known-good test distance.
Teams should also retire damaged targets. If a board has creases, shiny bubbles, torn corners, or tape residue across the marker area, keep it for classroom explanation rather than competition or demo use. The cost of a replacement board is usually lower than the cost of debugging a distorted target under pressure.
